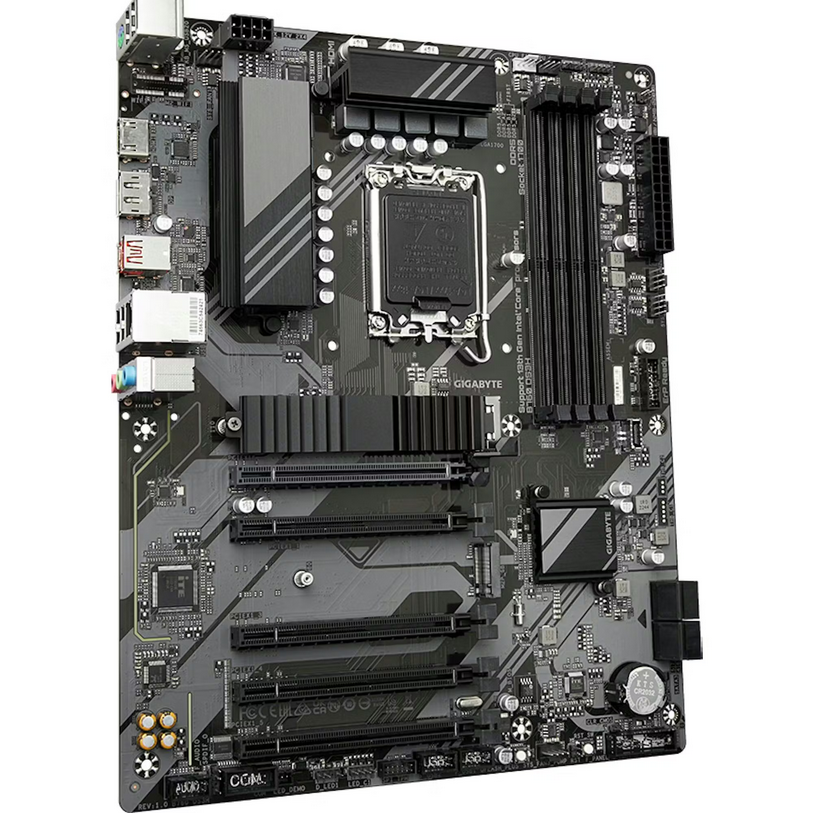

Gigabyte GA-B760 DS3H Motherboard

Formfaktor
ATX
Sockel
Intel 1700
Chipsatz
Intel B760
CPU-Kompatibilität
Core i-14000, Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM
4x DDR5 DIMM, dual PC5-60800U/​DDR5-7600 (OC), max. 192GB (UDIMM)
Erweiterungsslots
1x PCIe 4.0 x16, 4x PCIe 3.0 x16 (x1), 1x M.2/​M-Key (PCIe 4.0 x4, 22110/​2280), 1x M.2/​M-Key (PCIe 4.0 x4, 2280)
Anschlüsse extern
1x HDMI 2.0 (iGPU), 1x DisplayPort 1.2 (iGPU), 1x USB-C 3.2 (20Gb/​s), 1x USB-A 3.1 (10Gb/​s), 4x USB-A 2.0 (480Mb/​s), 1x Gb LAN (Realtek), 3x Klinke, 1x PS/​2 Combo
Anschlüsse intern
1x USB-C 3.0 Key-A Header (5Gb/​s), 1x USB 3.0 Header (5Gb/​s, 2x USB 3.0), 2x USB 2.0 Header (480Mb/​s, 4x USB 2.0), 4x SATA 6Gb/s (B760), 1x seriell, 1x TPM-Header, 1x S/​PDIF-Header
Header Kühlung
1x CPU-Lüfter 4-Pin, 1x CPU-Lüfter/​Pumpe 4-Pin, 3x Lüfter 4-Pin, 1x Lüfter/​Pumpe 4-Pin
Header Beleuchtung
2x 4-Pin RGB (+12V/​G/​R/​B, max. 2A), 2x 3-Pin ARGB (+5V/​DATA/​GND, max. 5A)
Buttons/Switches
Reset-Button (intern), USB BIOS Flashback/​Q-Flash Plus (intern)
Audio
7.1 (Realtek ALC897)
Grafik
iGPU
Wireless
N/​A
RAID-Level
0/​1/​5/​10 (B760)
Multi-GPU
N/​A
Stromanschlüsse
1x 24-Pin ATX, 1x 8-Pin EPS12V
VRM
10 virtuelle Phasen (8+2), 6 reale Phasen (4+2), PWM-Controller: NCP81530 (max. 10 Phasen)
Beleuchtung
N/​A
BIOS
1x 16MB (128Mb)
Besonderheiten
Audio+solid capacitors, Diagnostic LED (LED-Indikatoren), Onboard TPM 2.0 Unterstützung (Intel PTT)
Hersteller
Gigabyte
MPN
B760 DS3H
